Design and Controlled-Plot Validation of a Smart Dual-Mode Irrigation System for West African Riverbank Farms
DOI:
https://doi.org/10.33003/fjs-2026-1019-6198Keywords:
Ewedu, Smart Irrigation, Precision Agriculture, Soil Moisture Sensing, Internet of Things, Riverbank Farming, Smallholder AgricultureAbstract

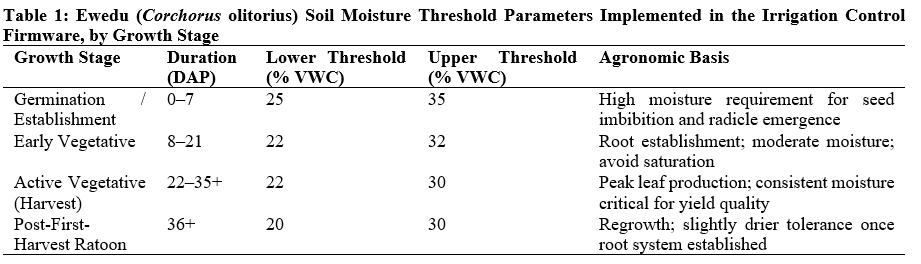

Ewedu (Corchorus olitorius) is a nutritionally and economically vital leafy vegetable in West Africa, yet dry-season cultivation on riverbank plots remains constrained by manual, intuition-driven irrigation that is labour-intensive and agronomically imprecise. Existing smart irrigation systems are poorly suited to this setting, as they typically assume mains electricity, reliable internet, and technically skilled users conditions largely absent on West African riverbank farms. To address this gap, we designed, built, and field-tested a low-cost, solar-powered IoT irrigation system that uses real-time capacitive soil moisture monitoring to automate ewedu irrigation for smallholder farmers. The system integrates an ESP32 microcontroller running crop-specific hysteresis logic, a 12V DC pump and micro-sprinkler network powered directly from a solar-charged battery bank (eliminating the inverter stage), and a farmer-friendly web dashboard usable both online and offline. Gravimetric calibration of the moisture sensor achieved a mean R² of 0.975. Field testing established an irrigation hysteresis band of 22–25% volumetric water content (VWC) for pump activation and 35–38% VWC for deactivation. Over a 42-day trial, the solar subsystem maintained a mean battery state of charge of 50%, with no low-battery events, against average daily consumption of 40 Wh. A recruited farmer completed all seven user-acceptance tasks unaided, rating ease of use at 4.6/5.
References
Abdelmoneim, A. A., Al Kalaany, C. M., Khadra, R., Derardja, B., & Dragonetti, G. (2025). Calibration of low-cost capacitive soil moisture sensors for irrigation management applications. Sensors, 25(2), 343.
Adebisi, O. A., Adebisi, J. A., & Lawal, O. (2013). Irrigation frequency effects on the growth and yield of jute mallow (Corchorus olitorius) in southwestern Nigeria. Journal of Agricultural Science and Technology, 15(4), 110–118.
Adeoti, A. I. (2008). Economic analysis of irrigation and rain-fed production systems in Ghana. African Journal of Agricultural Research, 3(7), 478–483.
Aker, J. C. (2011). Dial “A” for agriculture: A review of information and communication technologies for agricultural extension in developing countries. Agricultural Economics, 42(6), 631–647.
Aliyu, M., Hassan, G., Said, S. A., Siddiqui, M. U., Alawami, A. T., & Elamin, I. M. (2018). A review of solar-powered water pumping systems. Renewable and Sustainable Energy Reviews, 87, 61–76.
Balamurali, D., Chakankar, S., Sharma, G., Pagey, A. P., Natarajan, M., Shaik, S., Gnanavendan, S., & Arıcı, M. (2025). A solar-powered, IoT-controlled water irrigation system supported by rainfall forecasts utilizing aerosols: a review. Environment, Development and Sustainability, 1–40.
Bogena, H. R., Huisman, J. A., Schilling, B., Weuthen, A., & Vereecken, H. (2017). Effective calibration of low-cost soil water content sensors. Sensors, 17(1), 208.
Codeluppi, G., Cilfone, A., Davoli, L., & Ferrari, G. (2020). LoRaFarM: A LoRaWAN-based smart farming modular IoT architecture. Sensors, 20(7), 2028.
Davis, F. D. (1989). Perceived usefulness, perceived ease of use, and user acceptance of information technology. MIS Quarterly, 13(3), 319–340.
Duguma, A. L., & Bai, X. (2025). How the internet of things technology improves agricultural efficiency. Artificial Intelligence Review, 58(2), 1–26.
Fasuyi, A. O. (2006). Nutritional potentials of some tropical vegetable leaf meals: Chemical characterization and functional properties. African Journal of Biotechnology, 5(1), 49–53.
Gutiérrez, J., Villa-Medina, J. F., Nieto-Garibay, A., & Porta-Gándara, M. Á. (2014). Automated irrigation system using a wireless sensor network and GPRS module. IEEE Transactions on Instrumentation and Measurement, 63(1), 166–176.
International Renewable Energy Agency (IRENA). (2022). Renewable power generation costs in 2021. IRENA.
Kahimba, F. C., Mahoo, H. F., & Tagseth, M. (2014). Crop water requirement and irrigation scheduling for vegetable production in Tanzania. Tanzania Journal of Agricultural Sciences, 13(1), 1–12.
Liang, Z., Shorter, A. L., & Winter, A. G. (2024). Quantifying the energetic cost tradeoffs of photovoltaic pumping systems for Sub-Saharan African smallholder farms. Irrigation Science, 42, 149–161.
Medhi, I., Patnaik, S., Brunskill, E., Gautama, S. N. N., Thies, W., & Toyama, K. (2011). Designing mobile interfaces for novice and low-literacy users. ACM Transactions on Computer-Human Interaction, 18(1), 1–28.
Mehra, M., Saxena, S., Sankaranarayanan, S., Tom, R. J., & Veeramanikandan, M. (2018). IoT based hydroponics system using deep neural networks. Computers and Electronics in Agriculture, 155, 473–486.
Mgolozeli, S., Tesfamariam, E. H., & Beletse, Y. (2022). Yield, mineral content and root growth response of jute mallow (Corchorus olitorius L.) to planting density and water availability. Journal of Agriculture and Food Research, 10, 100384.
Morchid, A., Et-taibi, B., Oughannou, Z., Alami, R. El, Qjidaa, H., Jamil, M. O., Boufounas, E. M., & Abid, M. R. (2025). IoT-enabled smart agriculture for improving water management: A smart irrigation control using embedded systems and Server-Sent Events. Scientific African, 27, e02527.
Namara, R. E., Hope, L., Sarpong, E. O., De Fraiture, C., & Owusu, D. (2011). Adoption patterns and constraints pertaining to small-scale water lifting technologies in Ghana. Agricultural Water Management, 98(12), 1911–1917.
Nawandar, N. K., & Satpute, V. R. (2019). IoT based low cost and intelligent module for smart irrigation system. Computers and Electronics in Agriculture, 162, 979–990.
Nsoh, B., Katimbo, A., Guo, H., Heeren, D. M., Nakabuye, H. N., Qiao, X., Ge, Y., Rudnick, D. R., Wanyama, J., & Bwambale, E. (2024). Internet of Things-based automated solutions utilizing machine learning for smart and real-time irrigation management: A review. Sensors, 24(23), 7480.
Olaniyi, J. O., Akanbi, W. B., Adejumo, T. A., & Akande, O. G. (2010). Growth and nutritional assessment of jute mallow (Corchorus olitorius) as influenced by nitrogen fertiliser application in southwestern Nigeria. African Journal of Plant Science, 4(5), 150–158.
Parra-López, C., Ben Abdallah, S., Garcia-Garcia, G., Hassoun, A., Trollman, H., Jagtap, S., Gupta, S., Aït-Kaddour, A., Makmuang, S., & Carmona-Torres, C. (2025). Digital technologies for water use and management in agriculture: Recent applications and future outlook. Agricultural Water Management, 309, 109347.
Pereira, L. S., Cordery, I., & Iacovides, I. (2010). Coping with water scarcity: Addressing the challenges. Springer.
